WP7038
PD快充协议控制器
申请完整数据手册
申请样品

概述

  • 32K Bytes On-chip Flash

  • 1280 Bytes (1KB + 265B) RAM

  • Supports 12-bit ADC with 128Ksps Multiple protocols interface

  • Type-C / DRP / UFP / DFP Mode (TID1000209) BC 1.2 & HVDCP

  • User defined protocols

  • Communication

    • I2C Interface for 1-ch

    • Uart

  • Supports wide operating voltage

  • 2.2 ~ 5.5V (MCU), 3.0 ~ 5.5V (UFC)

  • Operating Temperature -40 ~ +105  ̊C

  • On-Chip POR (Power on Reset) 1.2V

  • Package is 32QFN with exposed PAD

  • Online CC pin programming

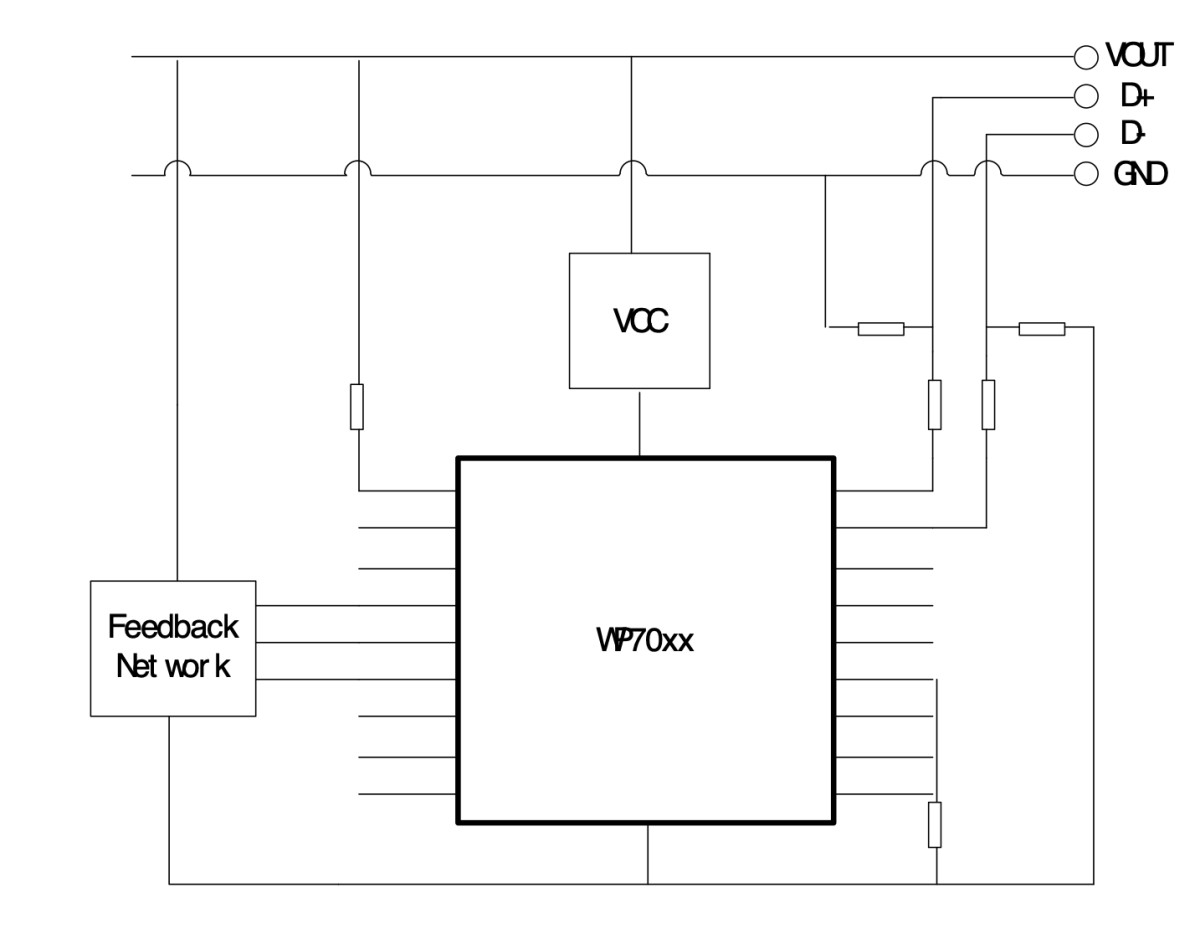

截屏2021-09-13 14.07.29.png


关键特性

应用

WP7038 is a programmable Type-C USB controller used for applications with single or multiple USB ports, e.g., Mobile phones, Laptop, Car chargers, USB Hubs, Power bank, Power adaptors. A multiple I/O pins with 32k Flash can be programmed to achieve user defined functions.

WP7038 has specially designed FSK modulation/ ASK demodulation circuities for wireless power applications. It integrates hardware protection blocks with sophisticated control mechanisms for OVP, OTP, OCP when working pair with WP8011. WP7038 has hardware FOD detection circuit and specially designed firmware algorithm for wireless power transfer applications.

  • Mobile phones, Pads, Laptop

  • USB Hubs, Car chargers,

  • Power adaptors, Power banks

  • Consumer electronic devices

  • Wireless charging controllers
