WP9025
无线充电发射接收芯片
申请完整数据手册
申请样品

概述

  • Single-chip tri-mode wireless power solution

  • Support Rx up to 55W wireless receiver charging

  • WPC-1.3 compliant (Firmware upgradable)

  • Rectifier Output Over-Voltage Protection (OVP)

  • Over Temperature Protection (OTP)

  • Full synchronous rectifier with low RDS MOSFETs Programmable wireless output voltage: 5V to 20V User-programmable foreign-object detection (FOD)

  • Embedded 32-bit ARM® Cortex®-M0 processor

  • Active-low enable pin for electrical on/off

  • Supports I2C interface and GPIO for charging control Programmable CC and CV control mode for direct battery charging from wireless charging output

  • 13-channels ADC for comprehensive power monitoring and protection

  • UART Interface for easy development

  • I2C online program method in mobile device.

  • -40 to +105°C ambient operating temperature range 3.33mm×4.15mm 63-WLCSP


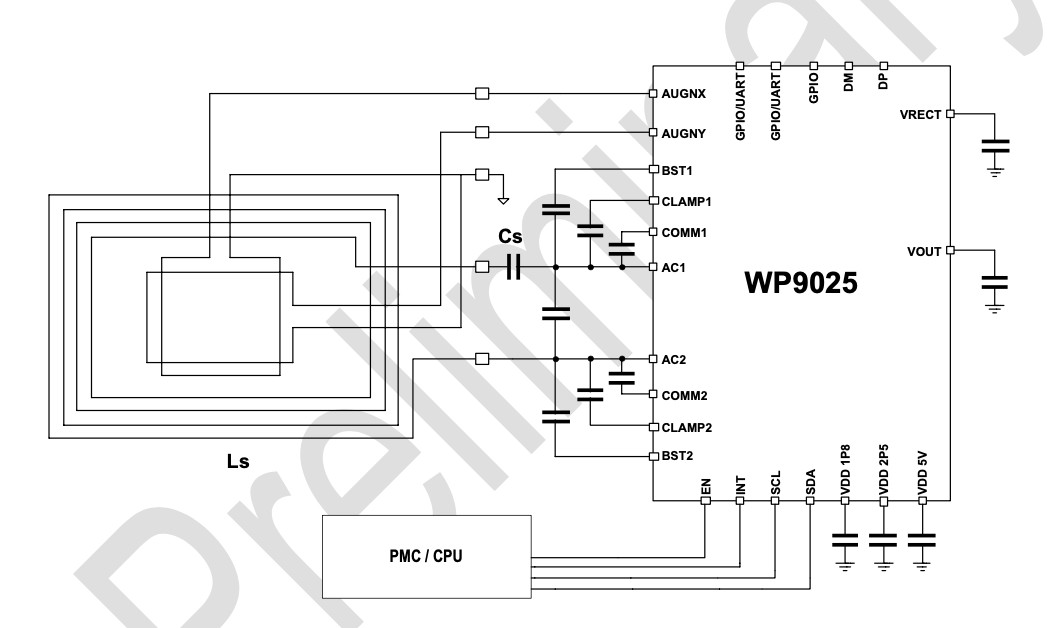

截屏2021-09-24 13.40.37.png


关键特性

应用

The WP9025 is a next generation highly integrated, single chip wireless power tri-mode operation (WPC/PMA/A4WP) receiver IC (Rx). The WP9025 can be configured to receive AC power signal through magnetic induction (MI) or magnetic resonance (MR). As a receiver, the WP9025 uses magnetic inductive charging technology converts an induced AC power signal on a resonant tank to a programmable regulated DC power. A high- performance low RDS synchronous rectifier support the WP9025 receives the power up to 55W with highly efficiency in applications of cellphones and handset, etc.

The WP9025 includes an industry-leading 32-bit ARM® Cortex®- M0 processor offering a high level of programmability. In addition, the WP9025 features a programmable current limit and a smart protection scheme eliminating OCP/OVP/OTP fault conditions for extreme safe solutions during operation. The WP9025 also has many multifunctionally general purpose Input/output (GPIO) pins to indicate operating and fault modes.

In addition, the WP9025 also has a pair of programmable D+/D- signals to achieve BC1.2, QC, AFC, etc. communication protocols. The WP9025 is available in small 63-WLCSP package.


  • Mobile phones

  • Tablets Accessories

  • Medical devices
